Understanding Tap and Die Thread Standards

Tap and die sets are essential tools used in various projects to create threads on screws, bolts, and nuts. Understanding the different types of taps and dies, as well as the standards that govern them, is crucial for anyone working with these tools. This article will guide you through the basics, standards, effective usage, maintenance tips, and common mistakes to avoid when using tap and die sets.

Key Takeaways

Tap and die sets are used to create internal and external threads on materials.
Different standards like DIN, ISO, and ASME guide the specifications of taps and dies.
Choosing the right set involves considering factors like material, size, and thread pitch.
Proper maintenance includes cleaning tools and knowing when to replace them.
Avoid common mistakes such as using incorrect drill sizes and neglecting lubrication.

Exploring The Basics Of Tap And Die Sets

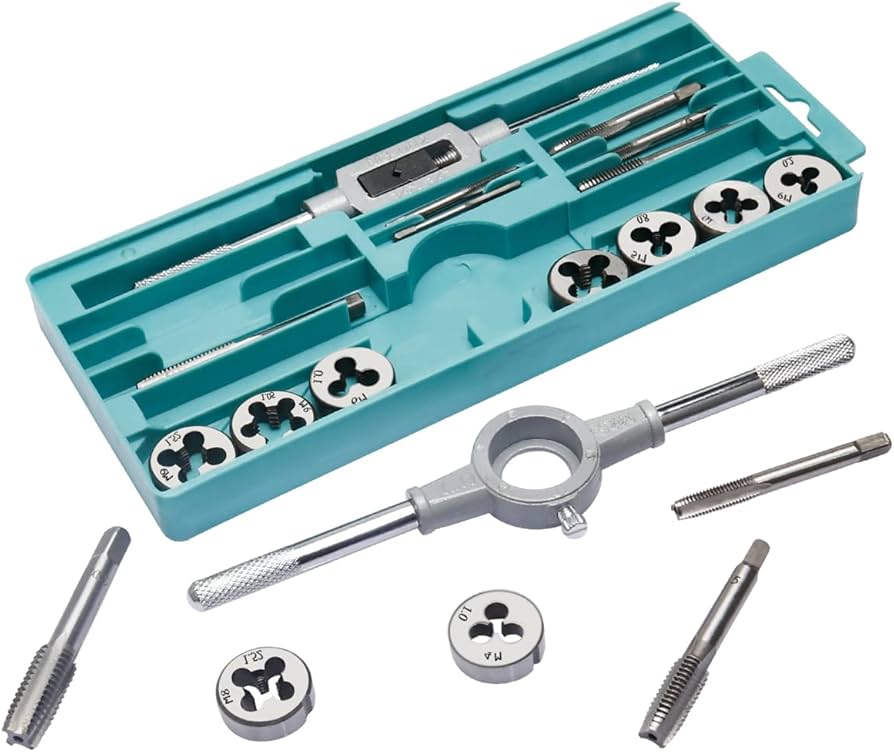

What Are Tap and Die Sets?

Tap and die sets are essential tools used in metalworking to create and repair threads. These tools help in making screws, bolts, and nuts. A tap is used to cut internal threads, while a die is used for external threads. Together, they allow for the creation of threaded holes and fasteners, making them vital in various mechanical applications.

Common Uses Of Tap and Die Sets

Tap and die sets are used in many situations, including:

Creating new threads on screws and bolts.
Repairing damaged threads in existing components.
Customizing fasteners to fit specific needs.

These tools are commonly found in workshops, garages, and manufacturing facilities, where precision and reliability are crucial.

Understanding Thread Types

Threads come in different types, and knowing them is important for using tap and die sets effectively. Here are some common thread types:

Unified Thread Standard (UTS): Commonly used in the United States.
Metric Threads: Used internationally, measured in millimeters.
British Standard Whitworth (BSW): An older standard still in use in some applications.

Thread Type	Description	Common Applications
UTS	Standard for screws and bolts in the US	General manufacturing
Metric	International standard for fasteners	Global applications
BSW	Older British standard	Vintage machinery

Understanding the different thread types is crucial for selecting the right tap and die set for your project.

Standards Governing Tap And Die Sets

When it comes to tap and die sets, there are several important standards that ensure these tools are effective and safe to use. Understanding these standards is crucial for anyone working with threaded components.

Overview Of DIN Standards

DIN standards are a set of guidelines established in Germany that cover various aspects of manufacturing and engineering. Here are some key DIN standards related to tap and die sets:

DIN 13: Covers general specifications for taps and dies.
DIN 228-1: Defines the taper of shanks for taps.
DIN 5157: Specifies sets of taps for pipe threads.

ISO Standards Explained

ISO standards are international guidelines that help ensure quality and safety across different countries. Some relevant ISO standards include:

ISO 68-1: General-purpose screw threads.
ISO 261: Preferred combinations of outer diameter and pitch for metric screw threads.
ISO 965: Covers tolerances for metric screw threads.

ASME/ANSI Standards

The ASME (American Society of Mechanical Engineers) and ANSI (American National Standards Institute) also provide standards for tap and die sets. For example:

ASME/ANSI B94.9: This standard outlines the specifications for taps and dies used in the United States.

Understanding these standards helps ensure that you choose the right tools for your projects, leading to better results and safer operations.

Choosing The Right Tap and Die Set

When it comes to selecting the perfect tap and die set, there are several important factors to keep in mind. Choosing the right set can make your threading tasks much easier and more efficient. Here’s what you should consider:

Factors To Consider

Type of Threads: Determine whether you need metric or imperial threads.
Material: Consider the material of the tap and die, as this affects durability and performance.
Usage Frequency: If you plan to use the tools often, investing in a higher-quality set may be worthwhile.

Material Options

Different materials are used for taps and dies, and each has its own advantages:

High Carbon Steel: Good for general use and cost-effective.
High-Speed Steel (HSS): Offers better durability and heat resistance, ideal for tougher materials.
Cobalt Steel: Best for heavy-duty applications, as it withstands high temperatures and wear.

Size And Thread Pitch

Choosing the right size and thread pitch is crucial for compatibility with your projects. Here’s a simple table to help you understand:

Tap Size	Thread Pitch	Recommended Drill Size
1/4-20	20 threads/inch	13/64 inch
M6x1	1 mm	5 mm
3/8-16	16 threads/inch	5/16 inch

Tip: Always refer to a tap drill size chart to ensure you are using the correct drill size for your tap.

By considering these factors, you can choose a tap and die set that meets your needs and helps you achieve the best results in your projects.

Using Tap And Die Sets Effectively

Preparation And Setup

Before you start using your tap and die set, it's important to prepare properly. Here are some steps to follow:

Choose the right tap and die size for your project. This ensures a good fit and prevents damage.
Clean the work area to avoid any debris that could interfere with the threading process.
Secure the workpiece in a vice or clamp to keep it steady while you work.

Tapping Techniques

Tapping is the process of creating internal threads in a hole. Here are some tips to do it effectively:

Use the correct tap type: There are different types of taps, such as taper, plug, and bottoming taps. Each serves a specific purpose.
Lubricate the tap: Always use cutting oil or lubricant to reduce friction and heat, which can cause the tap to break.
Turn the tap slowly: Apply steady pressure and turn the tap slowly to avoid cross-threading.

Die Cutting Techniques

Using dies to create external threads requires a slightly different approach:

Align the die properly: Make sure the die is straight and aligned with the workpiece to ensure even threads.
Use a die stock: This tool helps you turn the die smoothly and evenly.
Apply consistent pressure: Just like with tapping, maintain steady pressure while turning the die to avoid damaging the threads.

Remember: Proper technique is key to achieving clean and accurate threads. Taking your time during setup and execution will lead to better results.

Maintenance Tips For Tap And Die Sets

Keeping your tap and die sets in good shape is essential for their performance and longevity. Here are some helpful tips to maintain your tools:

Cleaning Your Tools

Always clean your taps and dies after each use. This prevents rust and buildup of debris.
Use a soft brush or cloth to remove any chips or dirt.
For stubborn grime, soak the tools in a mild solvent and then scrub gently.

Storage Solutions

Store your tap and die sets in a dry place to avoid moisture.
Use a dedicated toolbox or drawer to keep them organized and protected.
Consider using protective cases or pouches to prevent scratches and damage.

When To Replace

Inspect your tools regularly for signs of wear or damage.
If you notice chips, cracks, or excessive rust, it’s time to replace the tool.
Using worn-out tools can lead to poor threading and may damage your workpiece.

Regular maintenance not only extends the life of your tap and die sets but also ensures that your projects run smoothly and efficiently.

Common Mistakes To Avoid With Tap and Die Sets

When using tap and die sets, it's easy to make mistakes that can lead to poor results or even damage to your tools. Here are some common pitfalls to watch out for:

Incorrect Drill Sizes

Using the wrong drill size can lead to improper threading. Always refer to a tap drill size chart to ensure you are using the correct drill bit for the tap size.
If the hole is too small, the tap may break. If it's too large, the threads will be weak.
Double-check the specifications before starting your project.

Forgetting Lubrication

Lubrication is essential for smooth tapping and die cutting. Here’s why:
- It reduces friction, which helps prevent tool breakage.
- It helps clear chips from the cutting area, improving thread quality.
- Always use the right type of lubricant for the material you are working with.

Neglecting Tool Care

Proper maintenance of your tap and die sets is crucial. Here are some tips:
1. Clean your tools after each use to remove debris and prevent rust.
2. Store them in a dry place to avoid moisture damage.
3. Regularly inspect for wear and replace any damaged tools.

Remember, taking the time to avoid these mistakes can save you a lot of frustration and money in the long run!

The Evolution Of Tap and Die Technology

Historical Development

The history of tap and die technology dates back to the early 1500s, with the first known illustrations appearing in the Löffelholz-Codex from Nuremberg. In the 18th and 19th centuries, many metalworkers crafted their own taps and dies, using tools like lathes and files. This was especially common among builders of locomotives and firearms, who often made their own tools. As the 19th century progressed, the machining industry advanced significantly, leading to the rise of specialized suppliers for taps and dies, such as Joseph Clement, who began selling these tools in 1828.

Modern Innovations

With the introduction of advanced milling techniques in the late 1800s, the process of creating taps and dies became more efficient. By the early 20th century, thread-grinding practices evolved, enhancing the precision of screw threads. This period marked a shift from manual crafting to more automated processes, allowing for greater consistency and quality in tap and die production.

Future Trends

Looking ahead, the future of tap and die technology is likely to be shaped by:

Increased automation in manufacturing processes.
3D printing technologies that may allow for custom tap and die designs.
Smart tools equipped with sensors to monitor wear and performance.

The evolution of tap and die technology reflects the broader changes in manufacturing, moving from handcrafted tools to precision-engineered solutions that meet modern demands.

The Importance of Tap and Die Standards

Understanding tap and die thread standards is key for anyone working with threaded components. These standards help ensure that parts fit together correctly, which is crucial for safety and functionality. Whether you're a hobbyist or a professional, knowing the right tools and standards can save you time and effort. Remember, using the right tap and die set can make all the difference in your projects. So, keep this information in mind, and you'll be well on your way to mastering the art of threading!
