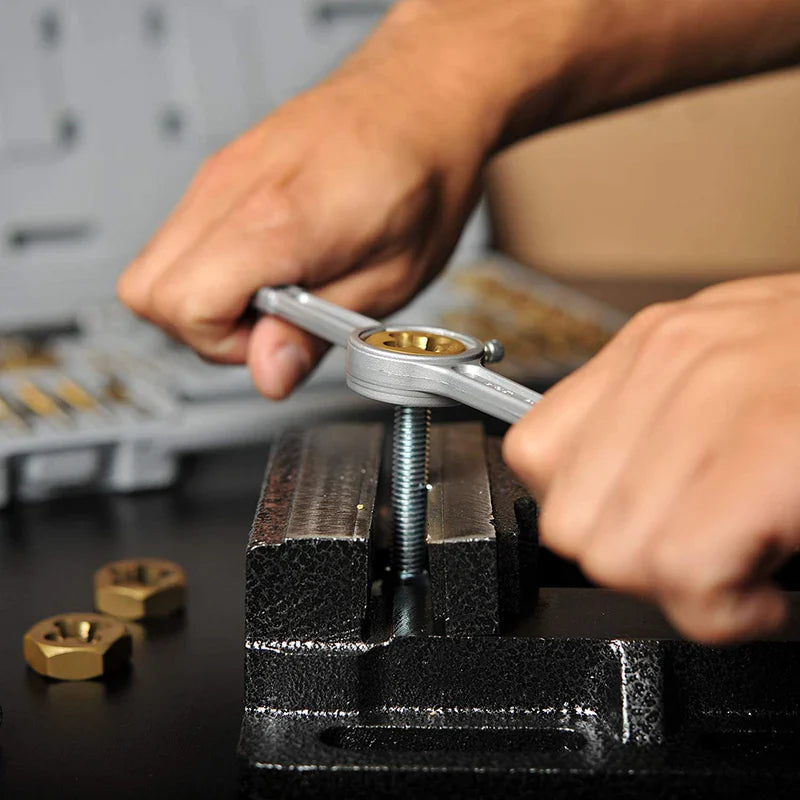

How to Repair Stripped Threads Using a Tap and Die Set

Stripped threads can be a common issue when working with metal parts, especially in automotive repairs. Fortunately, a tap and die set can help you fix these problems effectively. This article will guide you through understanding tap and die sets, preparing for repairs, and executing the process step-by-step. You'll also learn how to avoid common mistakes and maintain your tools for long-lasting use.

Key Takeaways

A tap and die set is essential for repairing stripped threads in various materials.
Always use the correct size tap or die to ensure a proper fit.
Lubrication is crucial for smooth threading and to extend the life of your tools.
Avoid over-tightening and misalignment to prevent further damage.
Consider alternative methods like thread inserts if the damage is severe.

Understanding Tap and Die Sets

What is a Tap and Die Set?

A tap and die set is a collection of tools used to create or repair threads on metal objects. Taps are used to cut internal threads, while dies are used for external threads. This means if you have a hole that needs threads inside, you use a tap, and if you have a rod or bolt that needs threads on the outside, you use a die.

Different Types of Tap and Die Sets

There are various types of tap and die sets available, including:

Metric Sets: Measured in millimeters, used for metric bolts and nuts.
Imperial Sets: Measured in inches, used for standard bolts and nuts.
Combination Sets: These include both metric and imperial tools, providing versatility for different projects.

Type of Set	Measurement System	Common Uses
Metric	Millimeters	European machinery
Imperial	Inches	American machinery
Combination	Both	General repairs

When to Use a Tap and Die Set

You should consider using a tap and die set when:

You need to repair stripped threads in a bolt or nut.
You want to create new threads on a piece of metal.
You are working on a project that requires precise threading.

Using a tap and die set can save you time and money by allowing you to fix or create threads instead of replacing parts.

Preparing to Repair Stripped Threads

Gathering the Necessary Tools

Before you start fixing stripped threads, it's important to gather all the tools you'll need. Here’s a quick list:

Tap and die set: This is essential for repairing threads.
Lubricating oil: Helps to reduce friction and heat.
Wrench: To hold the tap or die securely.
Measuring tools: Such as calipers or a thread gauge to determine the size of the threads.

Safety Precautions to Consider

Safety should always come first when working with tools. Here are some precautions to keep in mind:

Wear safety goggles: Protect your eyes from metal shavings.
Use gloves: To prevent cuts and scrapes.
Work in a well-lit area: This helps you see what you’re doing clearly.

Identifying the Thread Size

Knowing the correct thread size is crucial for a successful repair. Here’s how to identify it:

Use a thread gauge: This tool can help you find the pitch and size of the threads.
Compare with a bolt: If you have a similar bolt, see if it fits into the damaged threads.
Check the tap: The tap should match the size of the bolt you plan to use.

Remember: Taking the time to gather your tools and ensure safety will make the repair process smoother and more effective.

Step-by-Step Guide to Using a Tap and Die Set

Securing the Workpiece

To start, you need to secure the workpiece properly. This is crucial to avoid any damage while you work. Here are some tips:

Use a vise to hold the bolt or nut firmly in place.
If you’re working with a bolt, clamp only the head to prevent further damage.
For extra protection, consider using wood blocks or rubber padding in the vise.

Aligning the Tap or Die Correctly

Proper alignment is key to successful threading. Here’s how to do it:

Carefully position the tap or die straight over the workpiece.
Make sure it’s perpendicular to the surface to avoid cross-threading.
Start turning slowly to engage the threads without forcing it.

Using Lubrication for Smooth Operation

Lubrication is essential for a smooth threading process. Here’s why:

It reduces friction, which helps prevent overheating.
Apply cutting oil to the tap or die before starting.
Remember to back out the tool every few turns to clear debris and add more oil as needed.

Keeping your tools well-lubricated not only makes the job easier but also extends the life of your tap and die set.

Common Mistakes and How to Avoid Them

When using a tap and die set, it's easy to make mistakes that can lead to poor results. Here are some common errors and tips on how to avoid them:

Over-tightening the Tap or Die

One of the biggest mistakes is over-tightening the tap or die. This can cause damage to both the tool and the workpiece. To prevent this:

Use steady, even pressure when turning the tool.
Stop if you feel resistance; this may indicate a problem.
Always back off slightly before continuing to cut.

Incorrectly Aligning the Tool

Proper alignment is crucial for successful threading. Misalignment can lead to cross-threading or damage. To ensure correct alignment:

Position the tap or die straight over the hole or bolt.
Use a level or alignment tool if necessary.
Check your alignment frequently as you work.

Forgetting to Use Lubrication

Lubrication is essential for smooth operation and to extend the life of your tools. Neglecting this step can lead to overheating and tool wear. Remember to:

Apply a suitable cutting oil before starting.
Reapply lubrication as needed during the process.
Clean off old oil after use to maintain your tools.

Avoiding these common mistakes will help you achieve better results and prolong the life of your tap and die set. By taking your time and following these tips, you can make your threading tasks much easier and more effective.

Maintaining Your Tap and Die Set

Taking care of your tap and die set is essential for ensuring its longevity and effectiveness. Proper maintenance can save you time and money in the long run. Here are some key practices to keep your tools in top shape:

Cleaning After Each Use

Always clean your taps and dies after using them to remove any metal shavings or debris.
Use a soft brush or cloth to wipe them down, and avoid using harsh chemicals that could damage the tools.
Consider soaking them in a light oil to prevent rusting.

Proper Storage Techniques

Store your tap and die set in a dry place to avoid moisture, which can lead to rust.
Use a dedicated case or drawer to keep them organized and prevent damage.
Label your tools if necessary, so you can easily find the right size when you need it.

When to Replace Worn Tools

Inspect your taps and dies regularly for signs of wear, such as dull cutting edges or chips.
If you notice that they are not cutting as effectively, it may be time to replace them.
Keeping a spare set of commonly used sizes can help you avoid delays in your projects.

Regular maintenance of your tap and die set not only extends its life but also ensures that you achieve the best results in your threading tasks.

Alternative Methods for Thread Repair

When it comes to fixing stripped threads, there are several alternatives to using a tap and die set. These methods can be effective depending on the situation and the extent of the damage.

Using Thread Inserts

Thread inserts, often known by the brand name Helicoil, are a popular choice for repairing damaged threads. They work by providing a new thread inside the existing hole. Here’s how to use them:

Drill out the damaged threads to create a clean hole.
Use the provided tap to create threads for the insert.
Insert the thread insert using the special tool that comes with the kit.
Break off the tang of the insert to complete the installation.

When to Consider Professional Help

Sometimes, the damage may be too severe for DIY methods. Here are a few signs that you might need to call in a professional:

The stripped threads are in a critical load-bearing area.
You lack the tools or experience to perform the repair safely.
The repair requires specialized equipment that you do not have access to.

Pros and Cons of Different Methods

Here’s a quick comparison of the methods:

Method	Pros	Cons
Tap and Die Set	Simple for minor repairs	May not work for severe damage
Thread Inserts	Stronger than original threads	Requires precise drilling and tapping
Professional Repair	Guaranteed quality and safety	Can be expensive

Remember: Choosing the right method depends on the severity of the damage and your comfort level with repairs. Always prioritize safety and the integrity of the workpiece.

Repair Stripped Threads Like a Pro

Fixing stripped threads with a tap and die set can seem tough, but it's really not that bad! With a bit of practice, you can save yourself a trip to the mechanic and get your projects back on track. Remember to take your time, use some cutting oil, and keep everything straight. Whether you're rethreading a bolt or fixing a nut, you'll feel great knowing you did it yourself. So grab your tools, roll up your sleeves, and get to work! You'll be a pro at repairing threads in no time.
